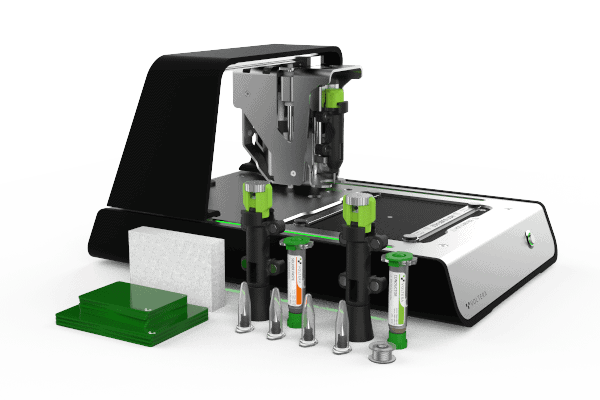

The V-One PCB Printer prints double sided PCBs, dispenses solder paste, and will help you explore new materials and substrates. Compatible with EAGLE, Altium, KiCad, Mentor Graphics, Cadence, DipTrace and Upverter. Print Area 128mm X 116mm Minimum Trace Width 0.2mm Minimum Pin-To-Pin Pitch 0.5mm

  • Print Area: 128mm X 116mm
  • Minimum Trace Width: 0.2mm
  • Minimum Pin-To-Pin Pitch: 0.5mm

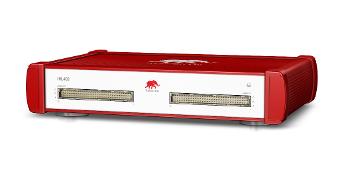

This compact, extremely powerful, 4-core HIL will give you all the tools you need to test your power electronics controllers in a wide range of applications: solar and wind power generation, battery storage, power quality and motor drives. Run your controllers in real time with 20 ns PWM resolution, in closed loop with high-fidelity power stage with 1 MHz update rate.

  • Processor - 4 Core
  • Channels - 16 x Analog inputs (AI) | 16 x Analog outputs (AO)/ 32 x Digital inputs (DI) | 32 x Digital outputs (D
  • Resolution - 16 bit
  • AIO range - +/- 10V
  • Connectivity - USB | Ethernet


  • Processor - up to 6 Cores
  • Channels - 16 x Analog inputs (AI) | 32 x Analog outputs (AO)/ 32 x Digital inputs (DI) | 32 x Digital outputs (D
  • Resolution - 16 bit
  • AIO range - +/- 10V
  • Connectivity - USB | Ethernet | CAN | RS232 | High speed serial link

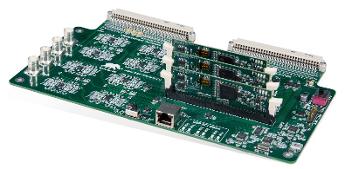

HIL uGrid DSP Interface

The Typhoon HIL DSP Interface for microgrid application, specially built for the C2000 family of Texas Instruments DSP DIM100 cards is the solution if you want to accelerate the development of multi-converter power electronics applications.

  • No. of Card Slots - 3
  • Supported TI control cards - TMDSCNCD2808 | TMDSCNCD28027, TMDSCNCD28035 | TMDSCNCD28069, TMDSCNCD28335
  • Connectors - JTAG | USB | CAN

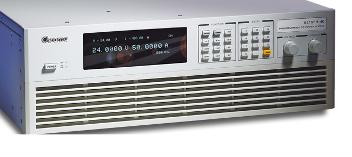

Chroma Programmable DC Power Supply with Solar Array Simulation

  • Programmable DC Power Supply 600V/17A/10KW with Solar Array Simulation
  • High Power Density
  • Precision V&I Measurements
  • Voltage & Current Slew rate control
  • Current sharing operation
  • Voltage ramp function (time range: 10 ms ~ 99 hours)
  • OVP, current limit, thermal protection
  • Standard USB / RS232 / RS485 interface
  • Optional GPIB / Ethernet interface
  • Solar array simulation function
  • Shade I-V curve simulation
  • I-V curve programming: 10 program / 100 I-V files

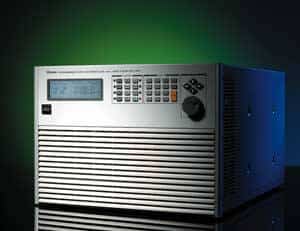

Chroma 63800 AC Load Simulator

Chroma's 63800 1.8KW / 350V / upto 18A AC&DC Electronic Loads are design for testing uninterruptible power supplies(UPS), Off-Grid Inverters, AC sources and other power devices such as switches, circuit breakers, fuses and connectors. The Chroma 63800 Loads can simulate load conditions under high crest factor and varying power factors with real time compensation even when the voltage waveform is distorted. This special feature provides real world simulation capability and prevents overstressing thereby giving reliable and unbiased test results.

  • Parallel / 3-Phase Function
  • Frequency Range : 45 ~ 440Hz, DC
  • Crest Factor Range : 1.414 ~ 5.0
  • Power Factor Range : 0 ~ 1 lead or lag (Rectified mode)
  • Parallel / 3-Phase Function
  • Constant & Rectified Load Modes for AC Loading
  • Short circuit simulation
  • Full Protection : OC, OP, OT protection and OV alarm

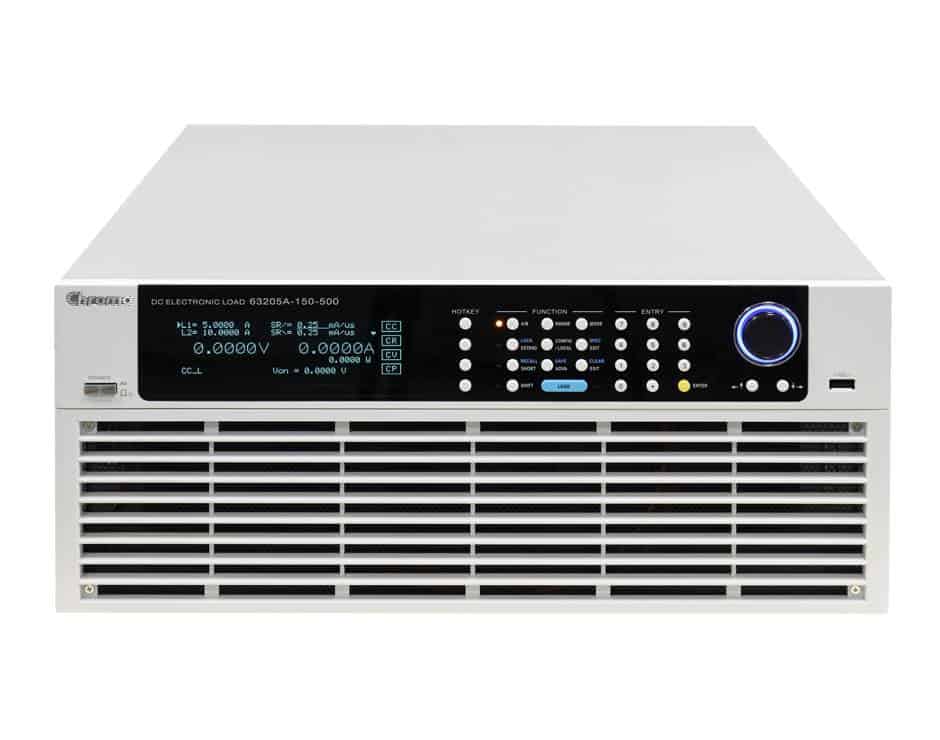

Chroma DC Electronic Load Simulator

The 63200A 18KW / 600V high power DC electronic loads are designed for testing a wide range of power conversion products including AC/DC and server power supplies, DC/DC converters, EV batteries, automotive charging stations, and other power electronics components.

Battery Simulator

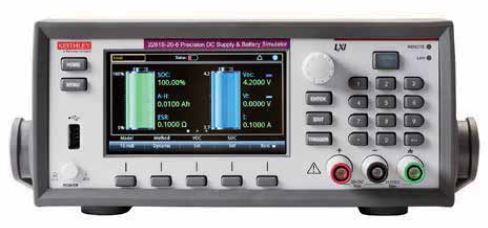

The 2281S-20-6 20V / 6A / 120W Dynamic Battery Simulator uses a model to emulate the response of a battery over its discharge cycle.

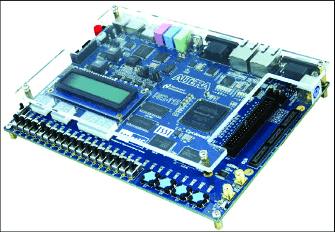

Altera DE2 115 Cyclone IV FPGA

The Cyclone EP4CE115 device equipped on the DE2-115 features 114,480 logic elements (LEs), the largest offered in the Cyclone IV E series, up to 3.9-Mbits of RAM, and 266 multipliers. In addition, it delivers an unprecedented combination of low cost and functionality, and lower power compared to previous generation Cyclone devices.

TI Launchxl - F28379D C2000 Delfino Launchpad

  • USB connected isolated XDS100v2 JTAG debug probe for real-time debug and flash programming
  • 4 x 20-pin headers/connectors
  • Programmable buttons and LEDs
  • TMS320F28379D: 200 MHz dual C28xCPUs and dual CLAs, 1 MB Flash, 16-bit/12-bit ADCs, comparators, 12-bit DACs, delta-sigma sinc filters, HRPWMs, eCAPs, eQEPs, CANs, and more
  • C2000 Delfino Position Manager-ready TMS320F28379D MCU capable of interfacing to absolute encoders as well as resolvers and SINCOS transducers
  • Supports two BoosterPacks
  • Two encoder interface connectors
  • Isolated CAN transceiver connector

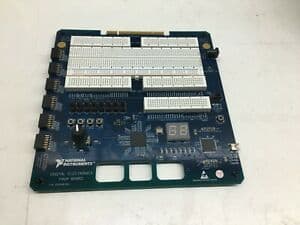

National Instruments Digital Electronics FPGA Board

Programmable with both LabVIEW and Xilinx ISE tools

  • JTAG-over-USB connectivity
  • 500,000-gate Xilinx Spartan-3E FPGA
  • 8 LEDs, 8 DIP switches
  • 4 push buttons
  • 2 seven-segment LED displays
  • Large breadboarding and prototyping area included
  • 12-bit ADC and DAC included
  • 6 Pmod connectors

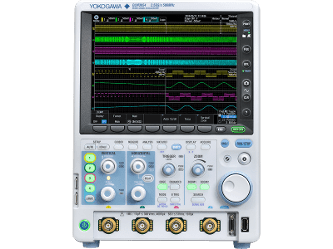

Yokogawa Mixed Signal Oscillator DLM3024

Yokogawa Mixed Signal Oscillator DLM3024 200MHz 2.5G samples per second with 4 channel has high accuracy, resolution in signal acquisition. Applications area involves : Hybrid and Electric Vehicles, In-Vehicle Serial Buses, Motor and drives, Office applicances, Power supplies (UPS, Inverters, DC-DC) and consumer electronics

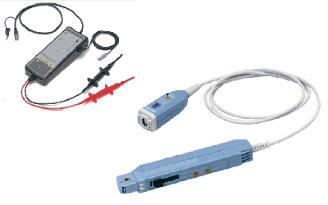

Yokogawa Current and Differential Voltage Probe

Current Probe:

  • Bandwidth: DC to 100 MHz; current measurement: Max 30 ARMS Inverter currents

Differential Voltage Probe:

  • Bandwidth: DC to 100 MHz (-3 dB)
  • Input attenuation ratio: switch between 1/10 and 1/100
  • Maximum allowed differential voltage: ±700 V (DC+ACpeak, 1/100)
  • Maximum common mode input voltage: ±700 V (DC+ACpeak) (1/10, 1/100)

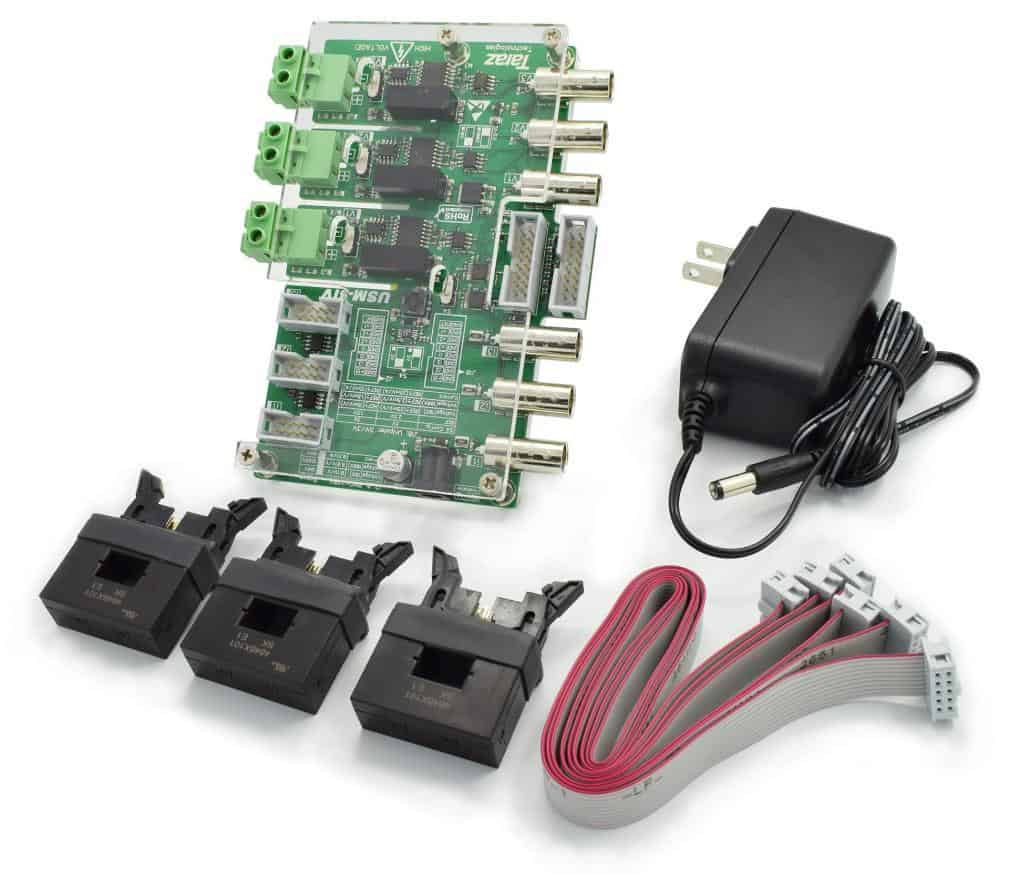

Current and Voltage Measurement Modules

  • Selectable 10X (±100V) & 100X (±1000V) Voltage Ranges
  • ±100A Current Sensing Range
  • Bipolar ±10V BNC Output for Oscilloscope & dSPACE
  • Selectable 3V/5V Unipolar Output for FPGA & DSP
  • Isolated 100kHz Voltage & 200kHz Current Bandwidth
  • Feedback of Power Electronics Systems
  • Converters & Inverters Control Feedback
  • 3 Phase Systems Monitoring
  • Motor Drives Monitoring

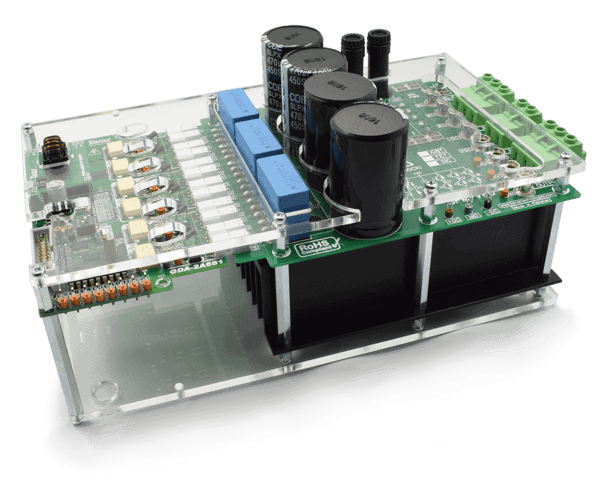

SiC Inverter and Converter Modules

  • Single Phase and Three phase Inverter with SiC Switch module rated at 600V 2.4KW and 6.1 KW respectively
  • Half Bridge Converter with SiC switch module rated at 350V 1.2KW ready to use as Buck / Boost / Buck-Boost / Double switch DC-DC converter / Half bridge inverter / Solar PV MPPT applications

High Performance MOSFET / IGBT / SiC Driver modules

High performance fully isolated SiC/IGBT/MOSFET gate driver modules for 2, and 4 Switches, suitable for multi-phase inverters research projects. These drivers use Texas Instrument’s ISO5852 smart and high-performance gate driver IC, and feature’s dead time generation logic, fault latch logic, input and output indication LEDs, test points and built in 5V regulator which could be used to power up external control circuitry. It has a very high common mode immunity of 100 kV/us. Features of this driver includes,

  • Suitable for 1200V SiCs/MOSFETs/IGBTs Switching upto 50 kHz
  • Short circuit protection with soft shutdown
  • Active miller and output UVLO protection
  • Fault feedback and fault latch protection
  • Configurable PWM/Independent inputs with adjustable dead-time
  • Visual and electrical feedback with LEDs and test points
